2hp asynchronus motor irrigation Solar deep well water pump for bore well

  • 2 - 49 Pieces
    $280.00
  • >=50 Pieces
    $245.00
Type:
Centrifugal Pumps WELL PUMPS
Maximum Head:
34m
Maximum Flow Rate:
19m3/h
Samples:
$280.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 7 16 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
DIFFUL
Model Number:
4DSC19-35-110-1500
Place of Origin:
Zhejiang, China
Application:
Irrigation and Agriculture
Horsepower:
2hp
Pressure:
2hp, High Pressure
Structure:
Multistage Pump
Cable Length:
2m
Outlet Size:
2inch
Voltage:
dc110v, dc110v
Power:
dc1500w
Certification:
ce
Usage:
Water
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Warranty:
2Year
Impeller:
Stainless steel
Item:
Water Irrigation Pump
MOQ:
2pcs
OEM:
OEM Services
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Wooden case
Port
NINGBO
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 7 16 To be negotiated
Video Description
Products Description

We focus on water pumps for 25 years
2hp asynchronus motor irrigation Solar deep well water pump for bore well

①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
②Quick response within2-8hours,response rates over 95%
③24 hours phone call is available,feel free to contact with us
Product Parameter

  2hp asynchronus motor irrigation Solar deep well water pump for bore well


MODEL NAME:4DSC19-35-110-1500
VOLTAGE:DC110V
POWER:1500W
MAX HEAD:35M
MAX FLOW:19M3/h
OUTLET:2INCH
Model
Power
Voltage
Max flow (m3/h)
Max head (m)
Outlet (inch)
4DSC5.2-67-72-750
750
72
5.2
67
1.25"
4DSC5.2-101-72-1100
1100
72
5.2
101
1.25"
4DSC5.2-101-110-1100
1100
110
5.2
101
1.25"
4DSC5.2-146-110-1300
1300
110
5.2
146
1.25"
4DSC4.8-203-110-1500
1500
110
4.8
203
1.25"
4DSC7.5-80-110-1300
1300
110
7.5
80
1.25"
4DSC7.5-100-110-1500
1500
110
7.5
100
1.25"
4DSC11-60-110-1500
1500
110
11
60
2"
4DSC19-35-110-1500
1500
110
19
35
2"

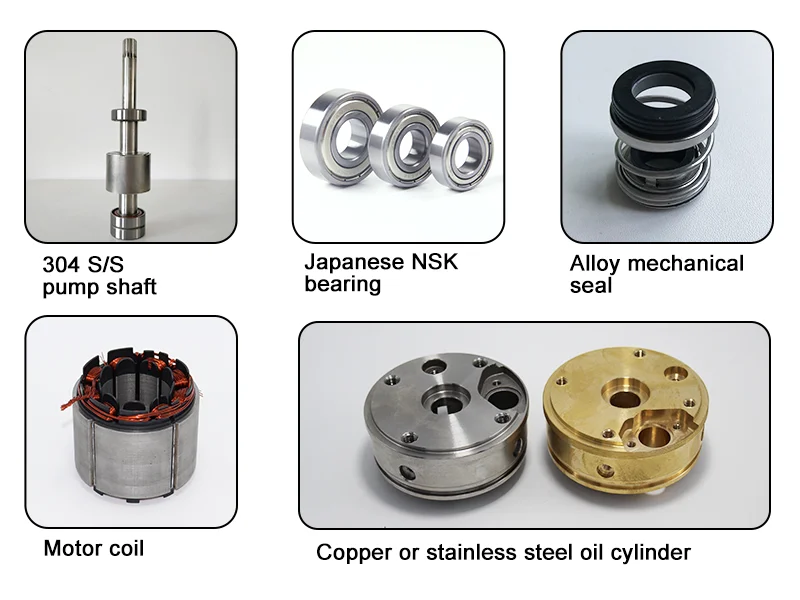

Pump Advantage
According to the other customers feedback of our return rate is 2% lower than other factory
①304 S/S pump shaft.
② Brass outlet/connector/ oil cylinder. ③Japanese NSK bearing, the working life will be 3 to 5 times prolonged.
④ Double bearing motor base can work under more axial pressure
⑤Alloy mechanical seal: Longer working life and high reliability.
⑥Motor coil is made by automatic winding machine

Controller Features:

1. Automatically run when power enough or tank is not full. Automatically off when tank is full.
2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
2. Soft start technology: No impulse current, longer life for the pump motor.
3. High voltage/Low voltage/Over-current/High temperature protection
4. 1 years warranty.
PUMP VOLTAGE
(V)
 SOLAT PANEL
(W)
 PEAK VOLTAGE
VMP(V)
OPEN CIRCUIT VOLTAGE
  VOC(V)
24V/36V
≥1.3PUMP POWER
≥18
18V-50V
48V
≥1.3PUMP POWER
≥30
30V-96V
72V
≥1.3PUMP POWER
≥50
50V-150V
110V
≥1.3PUMP POWER
≥60
60V-180V



IMPORTANT: DO NOT JUDGE PUMPS BASED ON HORSE POWER!
Customer Reviews
How to choose the correct solar water pump?
HEAD CALCULATE:
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tank

FLOW CALCULATE:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
Packaging

2hp asynchronus motor irrigation Solar deep well water pump for bore well


What We Get For You (Package Include): - 1 x 3" DC solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof

Related Products
dc solar submersible pump with plastic impeller
solar submersible water pumps 12 volt
DCPM Big flow solar water pump
About us

As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china we believe one day difful pump will exist in every corner of the world by means of its reliable quality and gooreputation thank all of you for the long-term supporting and concerning of our growth.Your views are the driving forces of DIFFUL

In our company, there are large quantities of high-quality scientific research and management talents, strong technical force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
