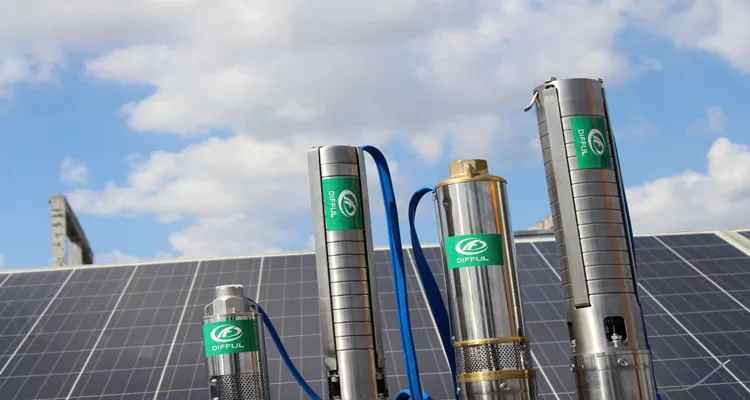

submersible solar pump with solar inverter mppt charge controller

  • 2 - 49 Pieces
    $275.00
  • >=50 Pieces
    $245.00
Type:
Centrifugal Pumps WELL PUMPS
Maximum Head:
101m
Maximum Flow Rate:
5
Samples:
$275.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 16 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
DIFFUL
Model Number:
4DSC5-101-110-1100
Place of Origin:
Zhejiang, China
Horsepower:
1.5
Pressure:
1.5, High Pressure
Structure:
Multistage Pump
Cable Length:
2m
Outlet Size:
1.25inch
Voltage:
dc110v, DC110V
Power:
1500w
Certification:
ce
Usage:
Water
Application:
Submersible
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Material:
Stainless Steel
Motor:
100% Copper Wire
Feature:
321 S/S motor shaft
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
woodcase or carton
Port
NINGBO
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 16 To be negotiated
Video Description
Products Description

We focus on water pumps for 25 years
submersible solar pump with solar inverter mppt charge controller

①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
②Quick response within2-8hours,response rates over 95%
③24 hours phone call is available,feel free to contact with us

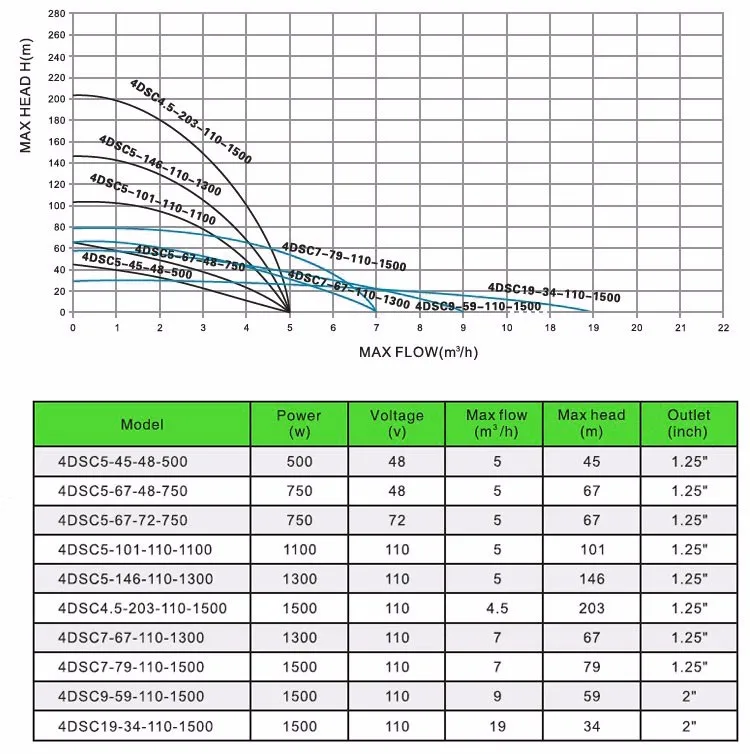

Product Parameter

submersible solar pump with solar inverter mppt charge controller

Pump Advantage
According to the other customers feedback of our return rate is 2% lower than other factory .

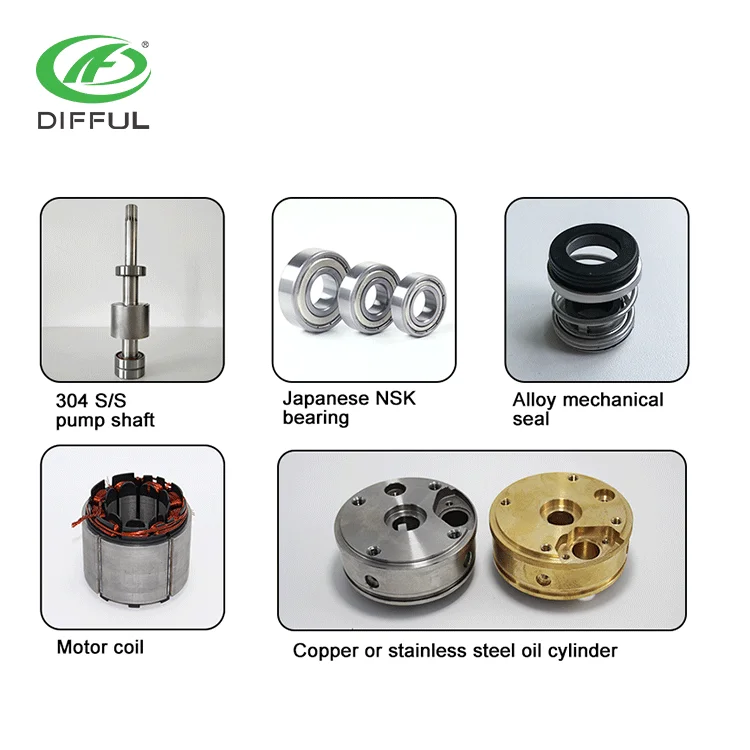

1. Permanent magnet DC brushless synchronous motor 2. 304 S/S pump shaft.3 years warranty. 3. Brass outlet/connector/ oil cylinder. 4. Japanese NSK bearing, the working life will be 3 to 5 times prolonged. 5. Double bearing motor base can work under more axial pressure 6. Alloy mechanical seal: Longer working life and high reliability. 7. Motor coil is made by automatic winding machine 8. Intelligent water shortage protection 9.mppt controller

submersible solar pump with solar inverter mppt charge controller

Installation Instructions
How to choose pump:
HEAD CALCULATE:
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tankWater source: Borehole(diameter__mm )
FLOW CALCULATE:How much water per hour or per day do you want? Selecting the solar pump model that meets your requirements against the pump model
number table
Packaging

submersible solar pump with solar inverter mppt charge controller

Customer Reviews

submersible solar pump with solar inverter mppt charge controller

About us

submersible solar pump with solar inverter mppt charge controller

As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day Dingfeng pump will exist in every corner of the world by means of its reliable quality and good reputation.

By the way,Dingfeng sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-win partnership with all of you cause dingfeng pump is always on the way to be better! Your views are the driving forces of Dingfeng!

I hereby on behalf of all the members of Dingfeng, thank all of you for the long-term supporting and concerning of our growth.

FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
